LOCKTON

'E-Series' (Euro Narrow Leverset) SMART DOOR LOCK (Hinged Door w/ KNOBS) *Matte Black*

Art ID:
ELEV36-BLK-HK25
Art ID:
ELEV36-BLK-HK28
Art ID:
ELEV36-BLK-HK30
Art ID:
ELEV36-BLK-HK35
Art ID:
ELEV36-BLK-HK40
Art ID:
ELEV36-BLK-HK45
Art ID:
ELEV36-BLK-HK50
Art ID:
ELEV36-BLK-HK60
Art ID:
ELEV36-BLK-HK65
Art ID:
ELEV36-BLK-HK70

Add To Cart

Description

PRODUCT DESCRIPTION

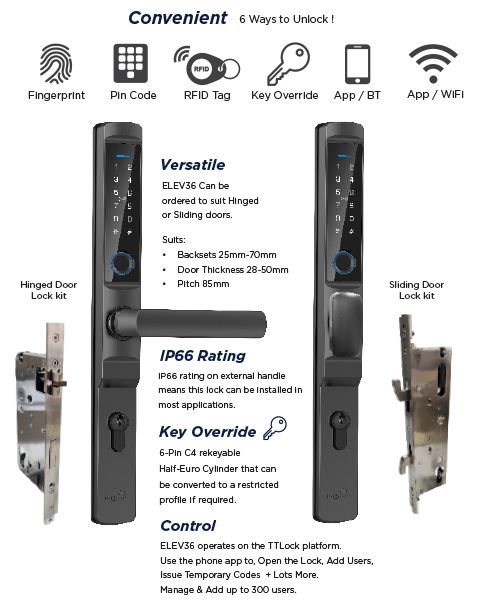

LOCKTON 'E-Series' Narrow Smart Door Lock with Fingerprint, Digital PIN Code, RFID Tag and Mobile App functionality.

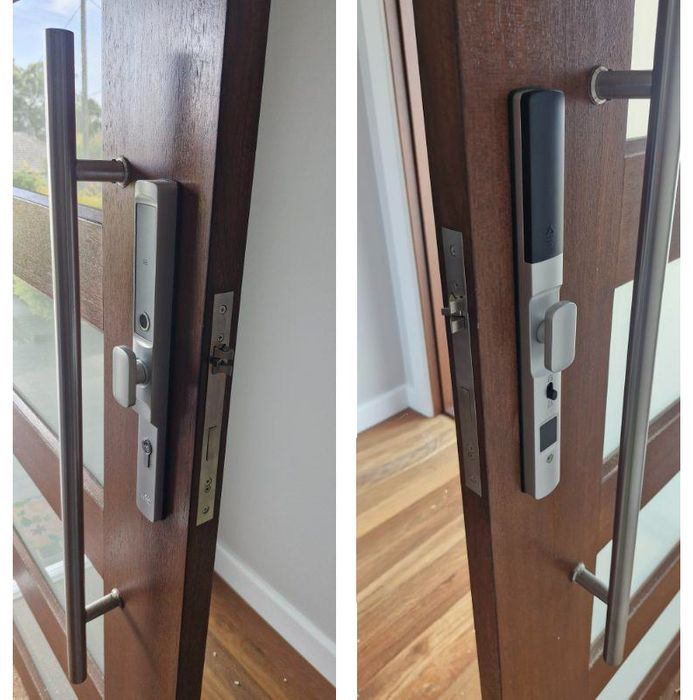

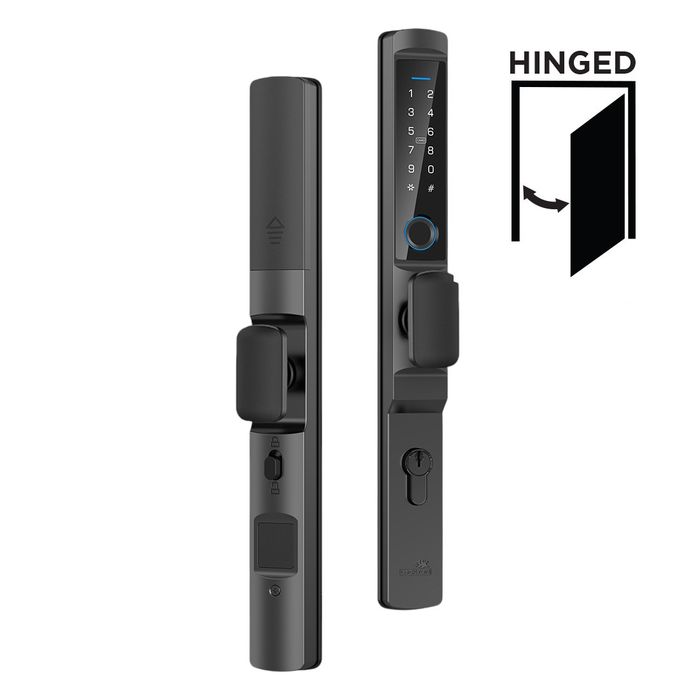

  • Designed for hinged door installations where a smaller turn knob is better suited than the full lever. For example when Architectural Push / Pull Handles have been fitted to the door.
  • The ELEV36 - Smart Euro Mortice Lock has double point locking & retrofits existing mortice locks in the market.
  • See RELATED PRODUCTS for additional Lock Faceplate and Strike Plate options for retrofitting

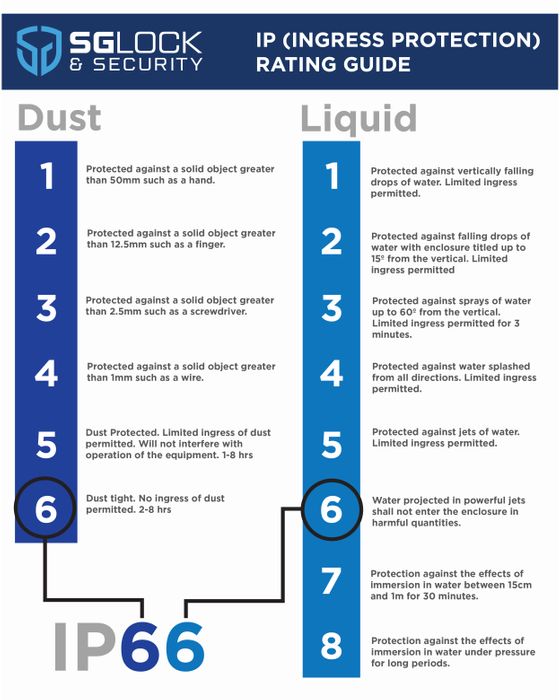

  • IP66 Rating on external handle means this lock can be installed in almost any application
  • Key Override via 6-Pin C4 Rekeyable Half Euro Cylinder that can be converted to restricted profiles
  • Lock is available in multiple backset sizes (25-70mm) ensuring a majority of existing installations can be upgraded
  • Step by step instructions ensure ease of installation and operation
  • Easily Use and Manage the lock via TTLOCK Phone App. Open the Lock, Add Users, Issue Temporary Codes and lots more
  • Add up to 300 x Users
  • Fingerprint sensing area is perfectly located within proximity of the lever to naturally read a thumb print for quick entry
  • Deadbolt can be thrown by turning the knob lever the opposite direction to retracting the latch, giving the combined security of a latching lockset and a deadbolt in the one lock.
  • Optional G2 & G3 Gateway accessories allow for remote access and control of lock via internet

Lock is supplied with the following:

  • 1 x ELEV36 Smart Lock Handle Set
  • 1 x Art. ELEV36-SLHD-BLK Set
  • 2 x RFID Key Fobs
  • 4 x Screw/Spindle Packs for varying door thicknesses
  • 4 x AAA Batteries
  • 1 x Smart Euro Mortice Lock (ordered to desired backset from dropdown)
  • 1 x 6-pin C4 Half-Euro Cylinder
  • 1 x Fitting Template
  • 1 x Instruction Manual

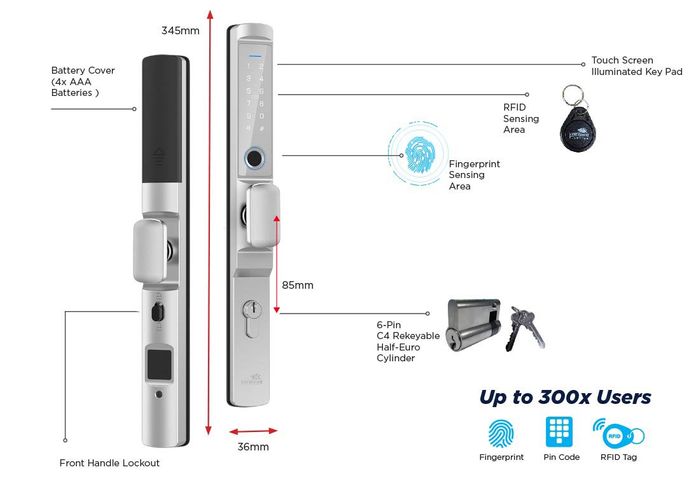

PRODUCT SPECIFICATION

  • Finish: Black
  • Dimensions (L x W): 345 x 36mm
  • Pitch: 85mm
  • IP Rating: 66
  • Lock Backset range: 25 - 70mm
  • Suitable door thickness: 28 - 50mm
  • Spindle Size: 8mm
  • Handle Projection: 30mm
  • Handle Height: 58mm
  • Handle Width: 30mm
  • External Handle protrudes 46mm from door
  • Power Supply: 4 x AAA Alkaline Batteries
  • Battery Life: Approx. 10,000 openings
  • Safe Working Temperature: -20°C to 50°C
  • 3 Year Warranty (*)
