VIRO

Euro Cyl. MORTICE LOCK (35mm B/Set) - Single-Throw

Art ID:
7435-36-2-9

Description

PRODUCT DESCRIPTION

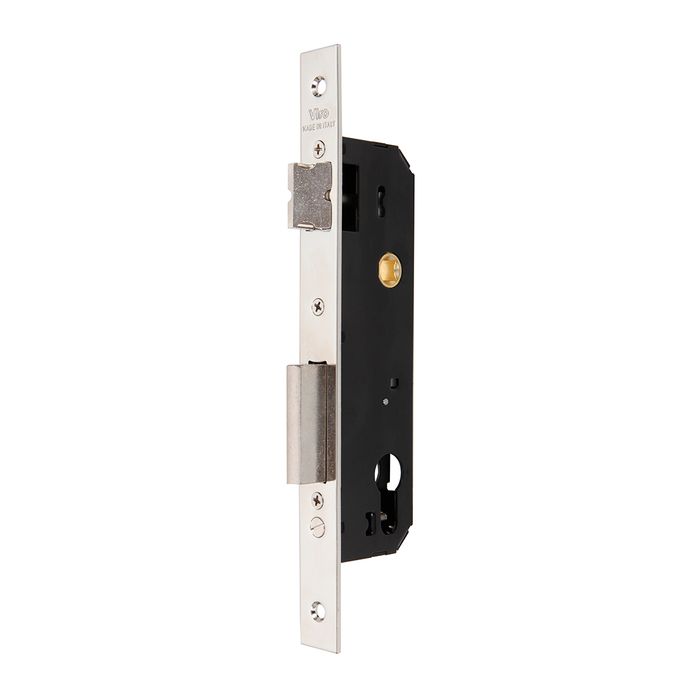

VIRO Art. 7435-36-2-9 Single Throw Euro Mortice Lock.

This high quality mortice lock is a great option for residential entry doors and will easily fit in place of most Euro Style Mortice locks that are on the market.

The dual latching and deadbolt functionality of the lock allows it to be used as a passage lock when required and is also a deadlock.

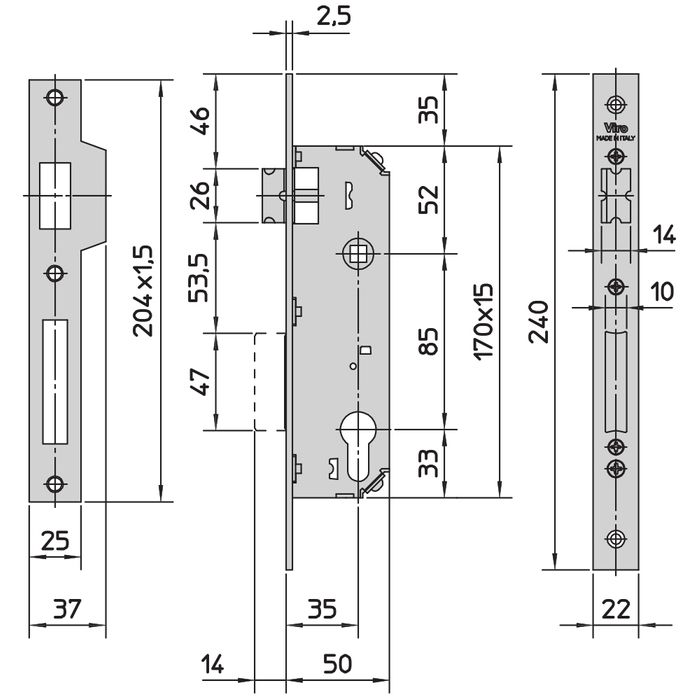

PRODUCT SPECIFICATION

  • Backset: 35mm
  • Deadbolt Dimensions: 47 x 10mm
  • Faceplate Dimension: 240 x 22mm
  • Cylinder to Spindle Centre: 85mm
  • Spindle Size: 8mm
  • Deadbolt Projection: 14mm
  • Deadbolt Operation: Single Throw
  • Lock Body Width: 50mm
  • Body Material: Steel
  • Latch and Deadbolt Material: Solid Brass
  • Supplied with: 1 x Strike Plate, 2 x Lock Fitting Screws & 1 x Cylinder Fitting Screw
  • MADE IN ITALY
