'V06' Electric GATE LOCK (Universal Handing) 70mm B/set - Latching Deadbolt *Galvanised Steel*

Art ID:
1-7918-H-217

Description

PRODUCT DESCRIPTION

The V06 Electric Gate Lock is extremely versatile being suitable for Indoor & Outdoor applications, manual or automatic doors & pedestrian or drive-through gates. V06 has both Service mode & Security mode capabilities & Its small size makes it ideal for Vertical & Horizontal installation on narrow frames.

FUNCTIONS
  • Service Mode: The lock opens with the electric impulse and only resets once the door/gate has been opened and then closed. Suitable for use with door closers and all types of automation systems. (Lock comes standard with this setting)
  • Security Mode: The lock opens only when electric impulse and manual or automatic pressure are applied simultaneously. It is therefore not advisable to use it with a door closer and/or unsuitable automation systems. (Can be set by removing internal component, see instructions)

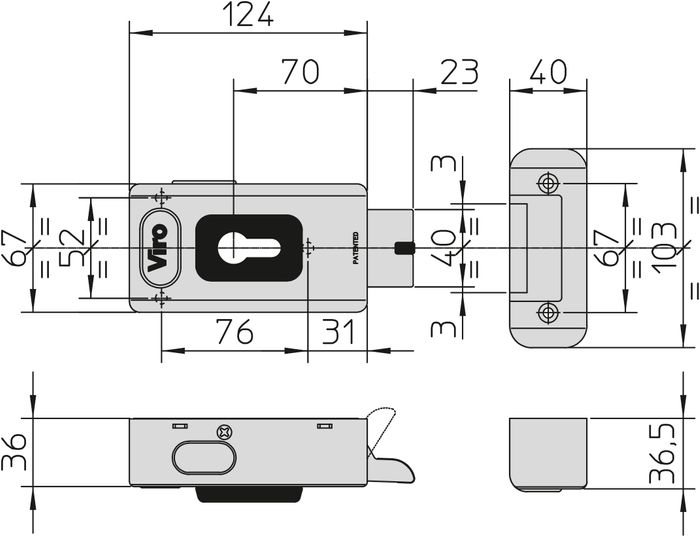

PRODUCT SPECIFICATION
  • Installation: Vertical or Horizontal
  • Backset: 70mm
  • Double replaceable coil (distributes the load uniformly and ensures a long working life)
  • Retrofits to existing V96 Electronic Locks
  • Voltage: Standard 12V AC (Also available in 12V DC & 24V AC or DC, see RELATED PRODUCTS)
  • Case Material: One Piece Completely Galvanised Steel
  • Cover Material: Galvanised Steel
  • Latchable Deadbolt: Solid Brass with Nylon Insert to reduce Closing Noise
  • Cylinder: Set up for double or half profile cylinders (not included with Lock)
