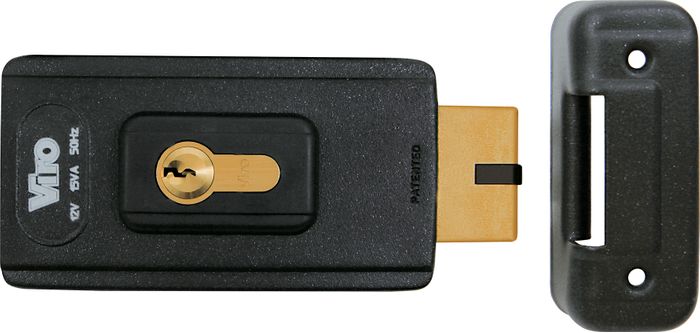

'V06' Electric GATE LOCK (Universal Handing) 70mm B/set - Latching Deadbolt Black

Art ID:

1-7918-H-BLK

Download Instructions

Description

PRODUCT DESCRIPTION

The V06 Electric Gate Lock is extremely versatile being suitable for Indoor & Outdoor applications, manual or automatic doors & pedestrian or drive-through gates. V06 has both Service mode & Security mode capabilities & Its small size makes it ideal for Vertical & Horizontal installation on narrow frames.

FUNCTIONS

Service Mode: The lock opens with the electric impulse and only resets once the door/gate has been opened and then closed. Suitable for use with door closers and all types of automation systems. (Lock comes standard with this setting)
Security Mode: The lock opens only when electric impulse and manual or automatic pressure are applied simultaneously. It is therefore not advisable to use it with a door closer and/or unsuitable automation systems. (Can be set by removing internal component. See instructions)

PRODUCT SPECIFICATION

Installation: Vertical or Horizontal
Backset: 70mm
Finish: Black
Double replaceable coil (distributes the load uniformly and ensures a long working life)
Retrofits to existing V96 Electronic Locks
Voltage: Standard 12V AC (Also available in 12V DC & 24V AC or DC, see RELATED PRODUCTS)
Case Material: Anthracite Metallic Painted on Galvanized Steel Base
Cover Material: Anthracite Metallic Painted on Galvanized Steel Base
Latchable Deadbolt: Solid Brass with Nylon Insert to reduce Closing Noise
Cylinder: Set up for double or half profile cylinders (not included with Lock)
