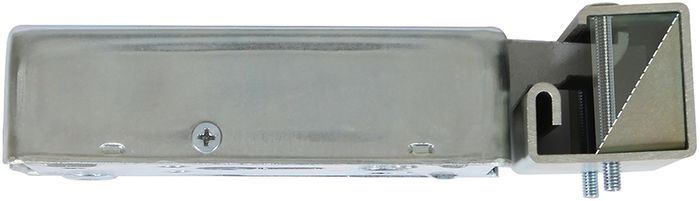

'V06-WB' Electric GATE LOCK (Universal Handing) 70mm B/set - Suits Bi-Directional Gates *Galvanised Steel*

Art ID:
1-7918-WB

Description

PRODUCT DESCRIPTION

The V06 WB electric lock has been designed to be installed horizontally to gates or driveway doors where those doors do not overlap.

Easy installation and functionality make this lock extremely practical and effective compared to any system that creates a door rebate. The latching deadbolt and protection plate provide a High Security Solution for these gate types. V06-WB has both Service mode & Security mode capabilities.

FUNCTIONS
  • Service Mode: The lock opens with the electric impulse and only resets once the door/gate has been opened and then closed. Suitable for use with door closers and all types of automation systems. (Lock comes standard with this setting)
  • Security Mode: The lock opens only when electric impulse and manual or automatic pressure are applied simultaneously. It is therefore not advisable to use it with a door closer and/or unsuitable automation systems. (Can be set by removing internal component. See instructions)

PRODUCT SPECIFICATION

  • Installation: Horizontal
  • Backset: 70mm
  • Double replaceable coil (distributes the load uniformly and ensures a long working life)
  • Voltage: Standard 12V AC (Also available in 12V DC & 24V AC or DC, see RELATED PRODUCTS)
  • Case Material: One-Piece Galvanized Steel
  • Cover: Completely Galvanised
  • Latchable Deadbolt: Stainless Steel, with a special shape that hooks to the striker
  • Cylinder: configured for double or half profile cylinders (not supplied with lock)
