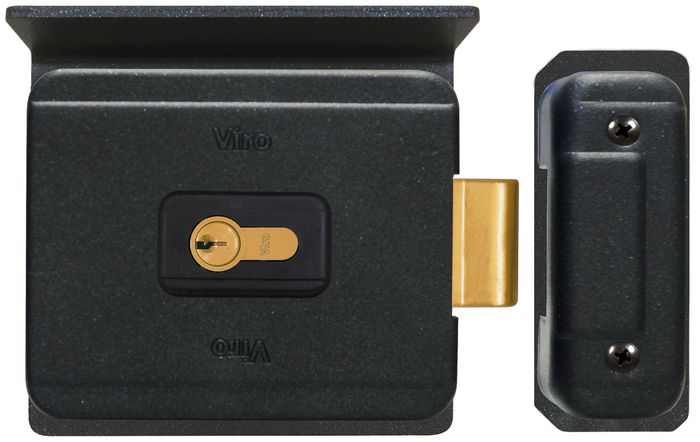

'V90' Electric GATE LOCK (Universal Handing) 70mm B/set - Horizontal - Latching Deadbolt *Black*

Art ID:
7928-BLK

Description

PRODUCT DESCRIPTION

The V90 electric lock was specially designed for installation on manual or automatic , outside outward opening doors and drive-through gates. This type of opening is necessary when the door/gate is situated on a slope or when safety regulations foresee an outward-opening escape route in the event of an emergency. Characteristics and finish make it ideal for installation even in surroundings subject to considerable temperature ranges.

FUNCTIONS

  • Service Mode: The lock opens with the electric impulse and only resets once the door/gate has been opened and then closed. Suitable for use with door closers and all types of automation systems.
PRODUCT SPECIFICATION
  • Installation: Horizontal
  • Gate opening direction: Outward
  • Finish: Black

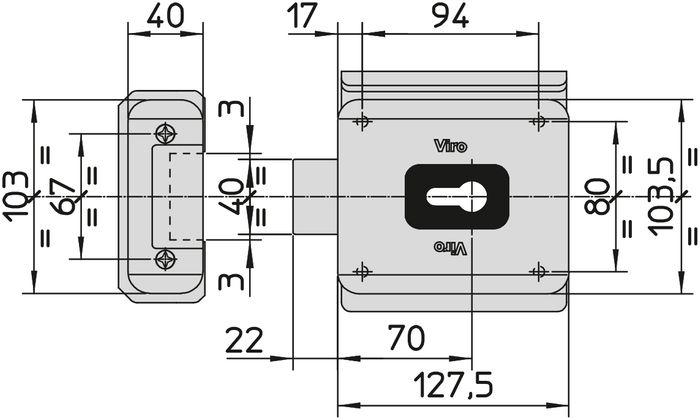

  • Backset: 70mm
  • Double replaceable coil which distributes the load uniformly and ensures a long working life.
  • Voltage: Standard 12V AC (Also available in 12V DC & 24V AC or DC, see RELATED PRODUCTS)
  • Case Material: One Piece Steel (completely galvanized or anthracite metallic painted on galvanized base)
  • Cover Material: Steel (completely galvanized or anthracite metallic painted on galvanized base)
  • Latching dead-bolt: Solid Brass
  • Cylinder: Configured for double or half profile cylinders (not provided with lock)
