VIRO

'V9083' Electric GATE LOCK - With Push Button - 63 mm Ext. Cylinder with Adj. 50-80mm B/set Horizontal Latching Deadbolt *Black*

Art ID:
9083-0793P-BLK

Description

PRODUCT DESCRIPTION

V9083 electric locks are suitable for manual or automatic outside doors and drive-through gates and are interchangeable with V90 (7920 series) and V83 (7910 series) electric locks. They are standard supplied with the service function and, by simply removing an internal part, can get the security function. Characteristics and finish make them ideal for installation even in surroundings subject to considerable temperature ranges. Long projection on the exterior cylinder to protrude on 50mm gate posts.

FUNCTIONS
  • Service Mode: The lock opens with the electric impulse and only resets once the door/gate has been opened and then closed. Suitable for use with door closers and all types of automation systems. (Lock comes standard with this setting)
  • Security Mode: The lock opens only when electric impulse and manual or automatic pressure are applied simultaneously. It is therefore not advisable to use it with a door closer and/or unsuitable automation systems. (Can be set by removing internal component. See Instructions)
PRODUCT SPECIFICATION
  • Installation: Vertical or Horizontal
  • Fitted with Push Button
  • Finish: Black
  • Backset: Adjustable 50-60-70-80 mm

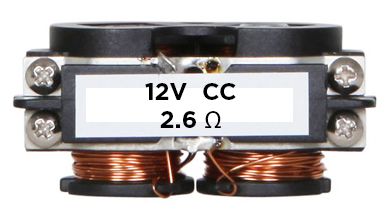

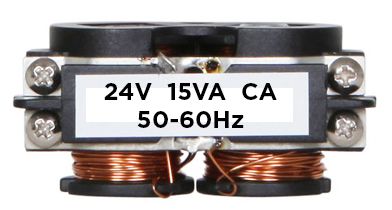

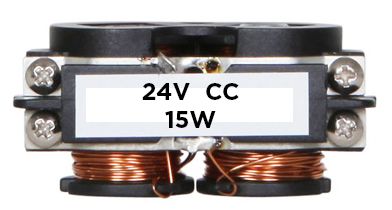

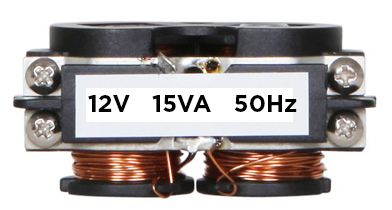

  • Double replaceable coil (distributes the load uniformly and ensures a long working life)
  • Voltage: Standard 12V AC (Also available in 12V DC & 24V AC or DC, see RELATED PRODUCTS)
  • Case: One-Piece Galvanized Steel
  • Cover with handle: Galvanized Steel
  • Latchable Dead-Bolt: AISI 304 Inox Stainless Steel High Resistance, Double Tightness Dead-Bolt
  • Cylinder: Solid Brass, fixed internal, fixed external
  • Keys: supplied with 3 x VIRO Profile Nickel-Plated Brass Keys
